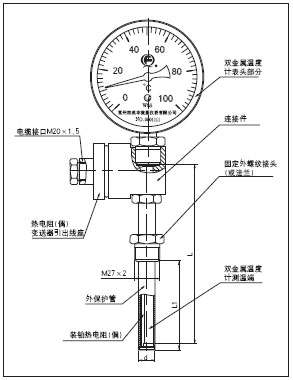

• Wiring drawing of thermal resistance (thermocouple)(as fig.8)

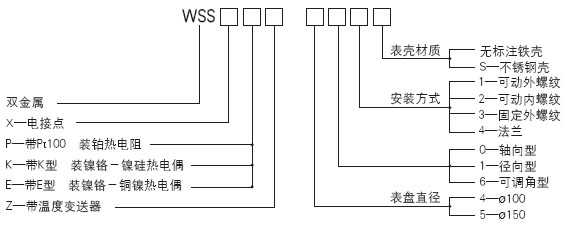

◇ Measuring range (℃):
WSSP：-80～40、-40～80、0～50、0～100、0～150、0～200、0～300、0～400、0～500；
WSSK：0～400、0～500；
WSSE：0～300、0～400、0～500；
◇ Accuracy class:
Bimetallic thermometer is of class 1.5;
Armoured platinum thermal resistance is of class B±（0.30＋0.005│t│);
Armoured platinum thermocouple is of classⅡ ±2.5℃ or 0.75%│t│;
Basic error of transmitter±0.5%
◇ Insert length L1(mm):100；150；200；250；300；400；500；750
◇ Tail pipe diameter d(mm):18；20
◇Installation thread:M27×2； 3/4”；Flange
◇External protective pipe material:1Cr18Ni9Ti、316、316L、coated with polytetrafluoroethylene
◇ Insulation resistance at room temperature:Platinum thermal resistance≥100MΩ；
Thermocouple≥1000MΩ.m
◇ Thermal response time of platinum thermal resistance(thermocouple) ≤60s；
Time constant of bimetallic thermometer≤180s
